Feature

• Large, easy-to-read set point display with 3.5-inch color touchscreen display
• 7-day programmable scheduling
• Airflow Adjust control and local ventilation enable/disable
• Independent cooling and heating set point in both degrees Fahrenheit / degrees Celsius
• Configurable in English, French, or Spanish language

Description

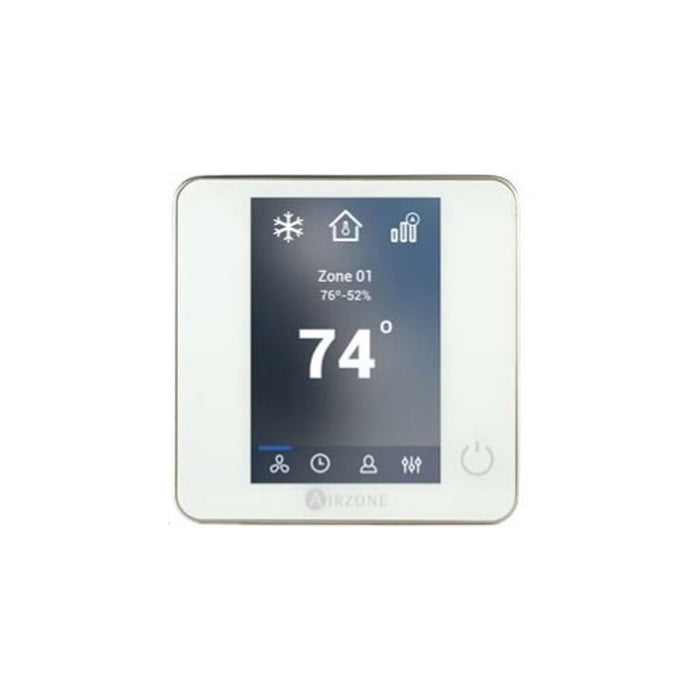

The Daikin DZK-MTS-3-W Wired Thermostat is an easy-to-use interface used to control a zone of a DZK zoning kit or operate as the main control. It features a color graphic interface with a capacitive screen, and the sleek control is finished in steel and glass. It also displays temperatures and operating values, selects the operation mode (timer & schedule functions and auto changeover mode) for the system, and can be used to assign names to zones. Can operate as a Main or Zone thermostat.

Specs

• Color: White
• Display Size: 3.5 in
• Display: Full Color, Touchscreen
• Compatible Models: FDMQ09RVJU, FDMQ12RVJU, FDMQ15RVJU, FDMQ18RVJU, FDMQ24RVJU, FBQ18PVJU, FBQ24PVJU, FBQ30PVJU, FBQ36PVJU, FBQ42PVJU, FBQ48PVJU, DZKS015E3-3, DZKS015E4-3, DZKS030E4-3, DZKS030E5-3, DZK030E4-3, DZK030E5-3, DZK048E4-3, DZK048E6-3
• 7 Day Programmable: Yes
• Additional Features: Remote Adjustment, Temperature Sensor, 7-day Programmable
• Voltage Input (DC): 12 VDC
• Operating Temperature: 32 deg F to 122 deg F
• Relative Humidity: 90%, Non-Condensing
