Feature

• Powered by CR2450 battery.
• English, French and Spanish.
• Fahrenheit °F / Celsius °C
• Control of set point temperature in 1ºF/0.5ºC increments
• Auto changeover mode
• Separate heating and cooling set points
• Timer and schedule functions

Compatible Indoor Units:
• FDMQ09RVJU, FDMQ12RVJU, FDMQ15RVJU, FDMQ18RVJU, FDMQ24RVJU, FBQ18PVJU, FBQ24PVJU, FBQ30PVJU, FBQ36PVJU, FBQ42PVJU, FBQ48PVJU

Compatible DZK Boxes:
• DZKS015E3-3, DZKS015E4-3, DZKS030E4-3, DZKS030E5-3,
DZK030E4-3, DZK030E5-3, DZK048E4-3, DZK048E6-3

Description

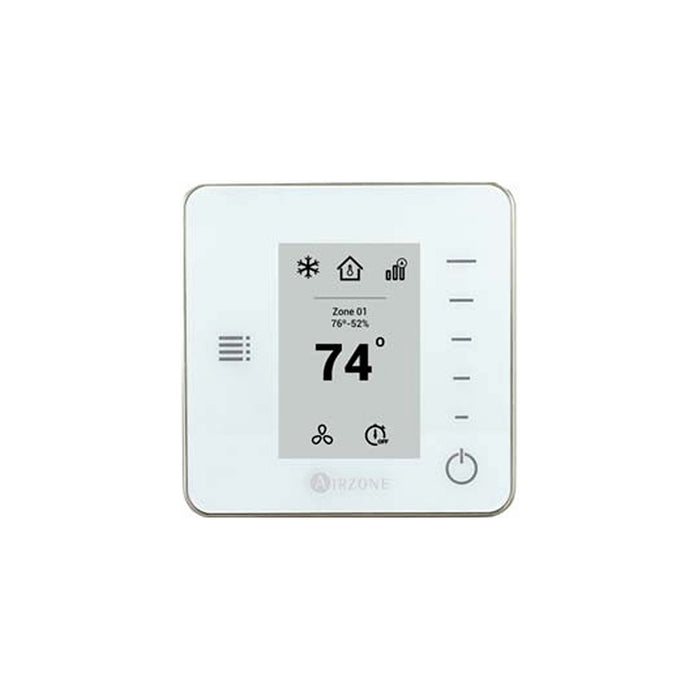

The DZK Wireless Thermostat offers an intuitive, easy-to-use interface to control a zone of a DZK zoning kit. Featuring an energy-saving e-ink screen and capacitive buttons, the sleek control is finished in steel and glass.

Specs

• Power Supply: DC Voltage
• V Max: 3.3V
• Battery: CR2450
• Useful Battery life: ~2 years
• I Max: 30 mA
• Stand-by Consumption: 0.01mW
• Communication Frequency: 915 MHz
• Maximum Power: 0 dBm
• Wireless Range: 130 ft. (40 m) in clear line of sight
• Storage: -4°F…158°F (-20°C…70°C)
• Operation: 32°F…122°F (0°C…50°C)
• Operating Humidity Range: 5%…90% (non-condensing)
• Set-point Temperature
Range: 59°F…86°F (15°C…30°C)
• Reading Accuracy: ±1°F (±0.5°C)
• Relative Humidity: ±4%
