Feature

• The primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
• Amperage rating: 50 Amp
• Double pole 2 in. wide breaker
• Trips to center position - must turn off then turn back on
• For use in type BR load centers
• Type BR breakers are UL-approved genuine replacement breakers for load centers made by Westinghouse, Challenger, and Bryant
• Interrupt rating - 10 kAIC
• Voltage rating is 120/240-Volt
• Wire size - #14-4 AWG Cu/Al at 60 degrees C or 75 degrees C

Description

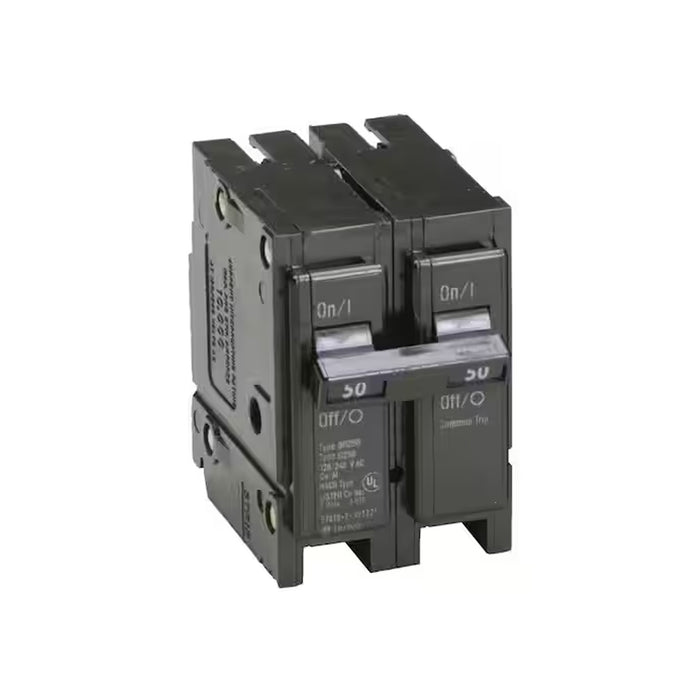

The Eaton Cutler-Hammer 50 Amp 2 in. Double-Pole Type BR Replacement Circuit Breaker trips to the center position with a maximum load of 240 volts. The UL-listed circuit breaker is compatible with Westinghouse, Challenger, and Bryant load centers. The breaker protects your home electrical system from overload and short circuits.

Specs

• Product Depth (in.): 3 in
• Product Height (in.): 3 in
• Product Width (in.): 1.96 in
• AIC Rating: 10000
• Breaker Type: Standard
• Connection Type: Neutral
• Electrical Product Type: Breaker
• Interruption Type: Standard Trip
• Maximum Amperage (A): 50 A
• Mounting Type: Plug-On
• Number of Poles: Double
• Number of Spaces: 2
• Power Distribution Features: No Additional Features
• Series Type: BR
• Trip Unit: Thermal Magnetic
• Voltage (V): 120/240 V
• Certifications and Listings: ANSI Certified, CSA Listed, UL Listed
