Feature

• Color-coded scales
• Sliding double “O” ring pistons reduce wear
• Long-life nylon seats
• Forged brass body for durability
• Full porting maximizes capacity and flow
• Some models include color-coded, 60? PLUS II™ hoses with standard 1/4? flare fittings
• Hose assemblies UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure. File# SA9737
• Made in the USA

Description

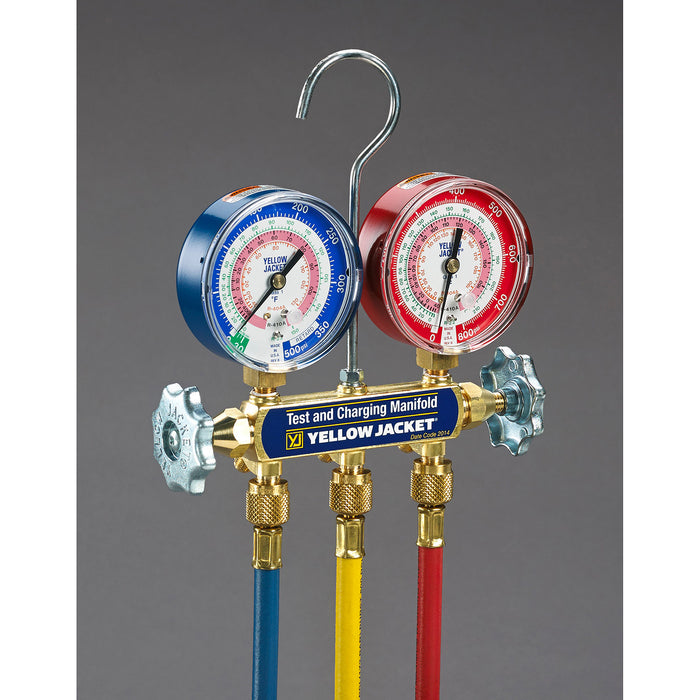

The Yellow Jacket 42004 “Series 41” Manifold has been the industry’s standard for both ease of use and durability. Since the 1970s, the brass, two-valve device has been the “go-to” for technicians worldwide. It has a 3-pack of 60″ PLUS II™ RYB hoses with standard fittings.

The Yellow Jacket Series 41 is a field-proven manifold line with a forged brass body and large, easier-to-read 3 and 1/8” color-coded gauges in a rugged steel case with polycarbonate crystals. The Yellow Jacket manifold measures three refrigerants. R-22/404A/410A includes three color-coded RYB 60” PLUS II standard ¼” flare fittings hoses. The hoses are recognized for 4000 PSI (275 bar) burst and 800 PSI (55 Bar) working pressure.

The Yellow Jacket gauges have refrigerant scales and pressure arcs. They are color-coded for convenience and large numbers that are easier to read. The Yellow Jacket r410A manifold gauges feature 1% accuracy over the entire pressure range. High accuracy is vital for critical charge systems where an accurate reading is essential. Yellow Jacket 42004 series 41 manifold is designed for air conditioning and refrigeration service technicians who want quality products.

Specs

• Refrigerants measured: R-22, 404A, and 410A
• Gauges: Red/Blue, 3-⅛”, with steel casing and polycarbonate crystal
• Body: Forged brass
• Hoses: Yes; ¼” Red, Yellow, Blue 3-pack
• Hose Length: 60”
• °F/°C: Fahrenheit
