Feature

• Displays vapor and liquid saturation temperatures
• System superheat and subcooling calculations
• Onboard data logging; export to your computer through USB or to your phone via the YJACK VIEW® app for 40870, 40875, and 40877 (40860 uses the ManTooth® app)
• Pressure hold mode displays the rate of change for both vacuum and positive pressure measurements
• 4-way TITAN® valve block
• 126 refrigerant profiles stored in the instrument including new blends not currently on the REFPROP database.
• Backlit display with auto-dimming
• Auto shut-off
• Bluetooth® capability
• Includes two temperature clamps (40877 kits have YJACK® Wireless Temperature Clamps)

Description

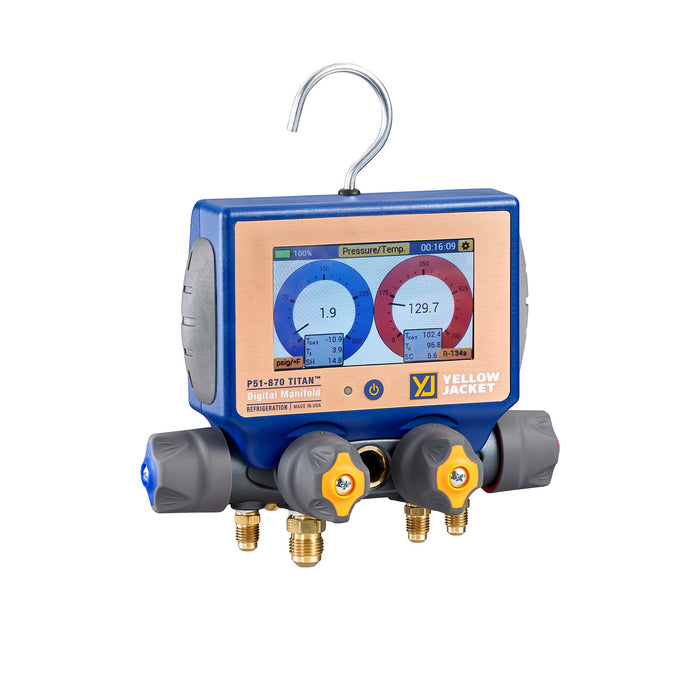

The Yellow Jacket 40870 P51-870 TITAN Digital Manifold with hoses quickly provides ultimate system measurements. This 4-valve manifold offers fast and accurate measurements for refrigeration and a/c systems. Sizes are displayed on a backlit digital display and can be transmitted via Bluetooth® to a Smartphone for further analysis. Local production of system pressures and temperatures, superheat, and subcool provide instant analysis. When the Yellow Jacket digital gauges are connected to your Smartphone, target superheat and subcool are easily attained, along with all the other capabilities of the YJACK VIEW™ or ManTooth® app.

Specs

• Working Pressure: 0 – 700 psia (48.3 bar)
• Pressure Sensing Resolution:
- 0.1 psi, 0.1 bar, 1 kPa
- 0.001 MPa, 0.01 kg/cm^2
• Pressure Sensing Accuracy :
- 0.5% of full scale at 77°F (25°C)
- 1% of full scale 55 to 130°F (13 to 54°C)
- 2% of full scale -40°F to 248°F (-40 to 120°C)
• Temperature Sensing Range:
- Sensing element: -40 to 266°F (-40 to 130°C)
- Max Cord temp: 176°F (80°C)
- Max Clamp Temp: 203°F (95°C)
• Temperature Sensing Resolution: 0.1°F or °C
• Temperature Sensing Accuracy: ±0.36°F (±0.2°C)
• Vacuum Sensing Range: 5 to 100000 microns
• Vacuum Sensing Resolution: 1 micron
