Feature

• 2 Valve manifold
• 3-1/8 backlit LCD gauges
• Pre-programmed with 21 of the most common refrigerants
• The forged body of the manifold is made of solid brass
• Each interchangeable gauge is capable of handling a maximum pressure of 800 psi
• Hose anchors are forged into the back of the body at 45° for extra security
• Sliding double O ring pistons reduce wear
• Long-life nylon seats
• Full porting maximizes capacity and flow
• Assembled in the USA

Description

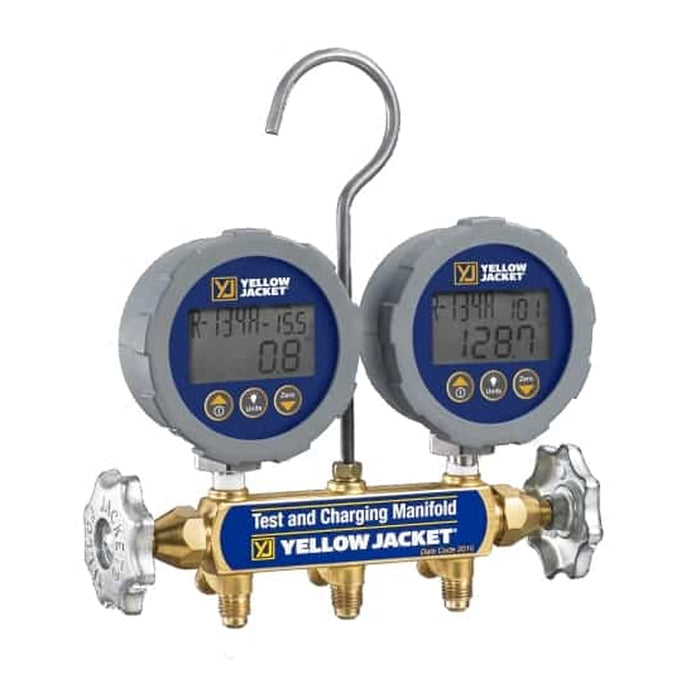

The Yellow Jacket 46060 Series 41 Digital Manifold combines the proven reliable Ritchie series 41 2-valve brass manifold and the advantages of digital gauges. This is the next best thing if you’re an HVAC technician who isn’t interested in getting a full-blown HVAC Analyzer manifold system like the P51-870.

This new refrigerant charging manifold is an excellent upgrade from your old worn-out gauges. With the digital meters replacing the traditional analog versions, you can test just about any system as 21 common refrigerants are pre-programmed from the factory. The 41 2-valve brass manifold features a forged brass body construction and sliding double “O” ring pistons causing a reduction in wear and tear. The nylon seats are long, and the ports are entirely bored for maximum capacity and flow.

The 3 1/8″ backlit LCD digital gauges are rated for maximum pressures of 800 psi. They have a stated accuracy of ± 0.5% F.S. A CR123A battery powers the gauges and has a life expectancy of 2 years for continuous operation without a backlight. With a built-in auto-power-off set for 10 minutes, testing that expectancy is unnecessary. The Yellow Jacket 46060 backs this manifold set with a one-year factory warranty.

Specs

• Pressure Range: -14.7 ~ 800 psi (-1 ~ 54.4 bar)
• Unit (Pressure): psi - bar - MPa - kg/cm2 - kPa
• Working Temperature: 14ºF ~ 140ºF (-10ºC ~ 60ºC)
• Pressure Accuracy: ± 0.5% F.S @ 71.6 ~ 82.4ºF (@22~28ºC)
• Unit (Temperature): ºF/ºC
• Working Humidity: 35 ~ 85%
• Sampling Rate: 1.2 sec max.
• Auto-off: 10 Minutes
• Power Supply: Battery CR123A (3.0V, 1400mAh)
• Battery Life: 2 years for continuous operation without backlight
• Warranty: One Year
• Refrigerants in Database: R-22, R-23, R-32, R-124, R-134A, R-290, R-404A, R-407C, R-407F, R-408A, R-410A R-417A, R-427A, R-444B, R-448A, R-449A, R-452A, R-507, R-600, R-1234YF, R1270
