Feature

• Color-coded scales
• Larger dials 3-1/8″ are bold and easy to read
• 1% accuracy (Class 1)
• Sliding double "O" ring pistons reduce wear
• Long-life nylon seats
• Forged brass body for durability
• Full porting maximizes capacity and flow
• Full-size metal valve handles for easy operation
• Includes 60" PLUS II™ compact valve hoses with standard 1/4" flare fittings
• Hose assemblies UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure
• Made in the USA
• 1 Year Limited Warranty

Description

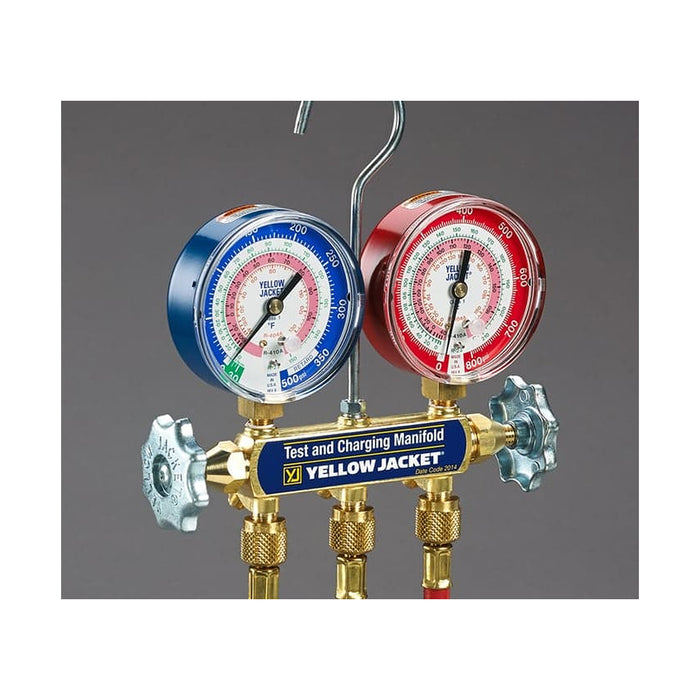

The Yellow Jacket 42201 Series 41 Manifold w/ 60″ Compact Ball Valve Hoses has three 60″ PLUS II™ hoses with compact ball valve fittings. This 2-valve various measures three refrigerants: R-22, R-404A, and R-410A.

The Yellow Jacket 42201 is a brass manifold with three 60” PLUS II compact valve hoses. Yellow Jacket manifold‘s forged body is solid brass for durability. The large 3 1/8″ gauges have color-coded scales. They are easier to read and feature a rugged steel case with polycarbonate crystals. The refrigerant scales and pressure arcs are color-coded for convenience, the numbers are large for high visibility. The yellow jacket gauges feature 1% accuracy (Class 1) giving an exact reading in critical charge systems. Also, the Yellow Jacket brass manifold is designed for air conditioning and refrigerant technicians who appreciate quality and durability. The 42201 Series 41 Yellow Jacket manifold reads in Fahrenheit, used with the following refrigerants: R22, R-404A, and R-410A.

Specs

• Refrigerants measured: R-22, R-404 and R-410a
• Gauges: Red/Blue, 3-⅛”, with steel casing and polycarbonate crystal
• Scale: PSI
• Valves: 2
• Material: Forged Brass
• °F/°C: Farenheit
• Hose Length: 60 inches
• Fitting style: Ball Valve, 1/4"
