Feature

• Wireless current measurement up to 50 Amps AC
• 1.2" jaw opening
• Current Sensor Accuracy: +/- 1% of reading or +/- 0.15 Amps (whichever is greater)
• Maximum Voltage: 660V
• Measure inrush current to analyze hard starts and troubleshoot blown fuses
• Flexible spiral cable and compact clamp body for easy access in difficult-to-reach areas
• Rotating mounting magnet for optimal Bluetooth® transmitter placement
• Bluetooth® 4.2 compliant low energy radio
• 400 ft. line of sight signal range
• Compatible with YJACK VIEW™ App
• Operating Temperature: 0°F to 130°F (-18°C to 55°C)
• Storage Temperature: -22°F to 130°F (-30°C to 55°C)
• 600-hour battery life (2x AAA included)
• 2-year manufacturer warranty

Description

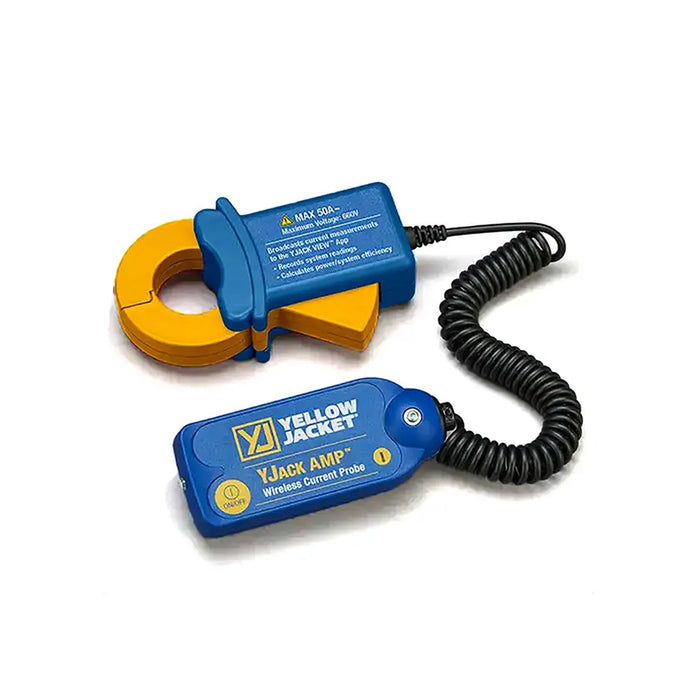

The Yellow Jacket 67067 YJACK AMP Wireless Current Probe takes electrical current measurements and analyzes critical system power information. The compact clamp provides accurate readings in hard-to-reach areas. Measure the inrush current of the system compressor to analyze hard starts. Compare system electrical input to heating/cooling output to calculate EER.
